Riyang V800 Manual Hydraulic Butt Welder

SKU : RIYA-201809800-SF

V800-Manual Hydraulic Butt Fusion Machine Metric-500-800mm. 380V; 50/60Hz Inserts 400mm; 450mm are optional

Available on backorder

x
Check availability at other Address

Check Availability At

Pincode field should not be empty!
Add to My Wishlist
Features
-
Optional Extras
Placeholder

Riyang V800 Stub End Holder

Placeholder

Riyang V800 Lifting crane

Delivery Timeframes
Pickup From FHS Poly
Store Details 11-15 Martha St, Seaford, Melbourne, 3198, Australia
Usually ready within 24 hours
(when in stock)
Delivery To
My delivery address
Estimated delivery time
not
Item(s) weighing more than 22kgs will require appropriate lifting facilities to unload your delivery.

Enquiry for Backorder Delivery Time Estimates

Enter your postcode and we'll get back to you with an estimated delivery time on backorders.

Thanks, We've received your enquiry. Will reach out to you soon.
SKU: RIYA-201809800-SF Category: Brands:

1. Machine Chassis
● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers.
2. Heating Plate & Trimmer
● Utilizes Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
● Each side of the heating plate maintains a temperature difference of less than 7°C.
● The stainless steel construction of the junction box ensures corrosion resistance.
● Employs a powerful electric drill for efficient pipe milling with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.

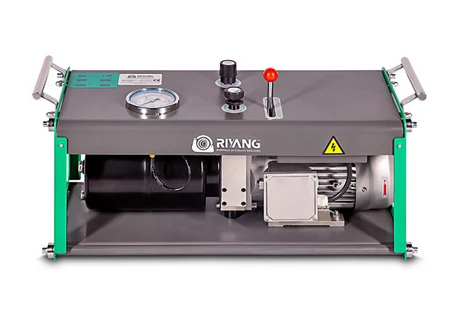

3. Power Station
● Robust hydraulic power with a maximum system pressure of up to 120 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.

Product Specifications
Product Description
Product Video
Documents & Downloads
Product FAQ
Product Specifications
Welding Range O.D. (400) 500-800 MM
Power Supply 380=±10%, 50/60HZ
Temperature Range Max. 320ºC
Heater Power 12.5 kW
Trimmer Power 2.2 kW
Pump Power 2.2 kW
Working Pressure Range 0 – 120 Bar
Gross Weight 1290KGS
